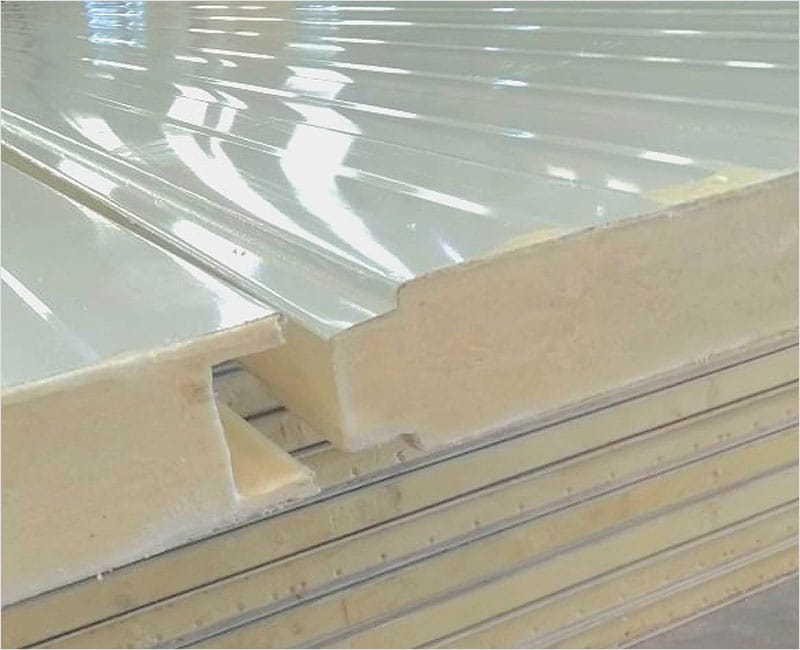

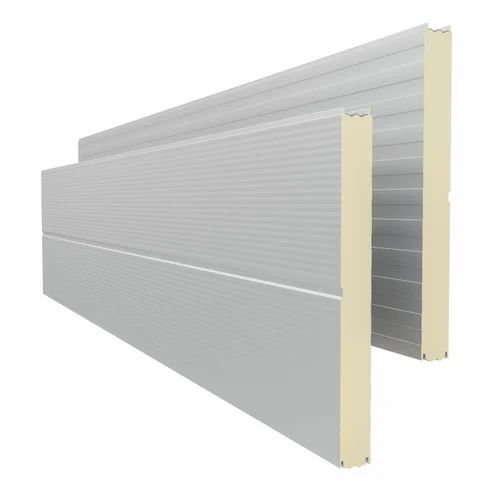

30 mm Puff Panel

Name: 30 mm Puff Panel
Brand: Jayant Enterprises
Price: 952.3 INR
Availability: InStock

Price 952.3 INR/ Piece

Get a Price/Quote

MOQ : 1 Square Meter

30 mm Puff Panel Specification

Surface Treatment
Pre-painted / Coated

Size
Standard length up to 10 meters; customized sizes on request

Coating Type
Polyester / PU / PVDF coating on steel sheets

Layer
3-layer (Metal-Foam-Metal)

Thermal Conductivity
0.022 - 0.024 W/mK

Installation Guideline
Panel should be installed on a flat, dry surface. Joints must be sealed for best insulation. Handle carefully to prevent panel damage.

Feature
Fire Resistant, Thermal Insulation, Light Weight, Durable

Density
2 Gram per cubic centimeter(g/cm3)

Product Type
Sandwich PUF Panel

Tensile Strength
>0.2 N/mm2

Width
1000 mm (standard); custom width available

Thickness
30 mm (panel core)

Application
Cold Storage, Prefabricated Buildings, Clean Rooms, Roofing, Wall Cladding

Heat Conductivity
0.022 - 0.024 W/mK

Color
Off White / Available as per requirement

Max Withstanding Temperature
-30C to +80C

Material
PP/GI

Service Life
Over 25 years with proper maintenance

Moisture Resistance
High

Core Material
CFC & HCFC free rigid polyurethane foam

Eco-Friendly
Yes, made with eco-friendly blowing agents

Sound Insulation
24-28 dB (approx. depending on thickness)

Ambient Operating Temperature
Suitable for -30C to +80C

Panel Joint Type
Cam Lock / Tongue and Groove Interlocking

Water Absorption
<1% by volume

Compressive Strength
>150 kPa at 10% deformation

Fire Rating
B2 Class (DIN 4102)

Load Bearing Capacity
Supports up to 150 kg/m2 (varies with span)

Surface Sheet Thickness
0.4 mm to 0.6 mm (each side)

30 mm Puff Panel Trade Information

Minimum Order Quantity
1 Square Meter

Delivery Time
10 Days

About 30 mm Puff Panel

A 30mm PUF (Polyurethane Foam) panel is a factory-made, insulated sandwich panel with a rigid foam core between two metal sheets (like PPGI/PPGL), offering excellent thermal insulation for roofing, walls, and cold storage, featuring interlocking joints for airtight seals, high energy efficiency, and durability for various commercial and industrial applications. Key features include low thermal conductivity, moisture resistance, high strength, and customizable finishes, with a typical U-value around 0.75 for 30mm thickness, making it ideal for pre-engineered buildings and controlled temperature environments.

Key Features & Specifications:

Core Material: Rigid Polyurethane Foam (PUF).
Fascia/Skin: Pre-painted Galvanized Steel (PPGI) or Aluminum (PPGL).
Thickness: Available in 30mm and up, with 30mm being a common option for good insulation.
Insulation Value (U-Value): Approximately 0.75 (mK/w) for 30mm thickness, indicating excellent thermal resistance.
Joints: Interlocking system (often camlock) with butyl tape and sealants for airtight, thermal-break-free construction.
Applications: Roofing, wall cladding, partitions, cold storage, clean rooms, prefab shelters, and more.
Benefits: High energy savings, precise manufacturing, weather-proof, long-lasting, and fast construction.

Engineered for High Performance

Designed with a rigid polyurethane foam core and three-layer metal-foam-metal construction, these 30 mm Puff Panels offer robust thermal and sound insulation. The advanced Cam Lock or Tongue and Groove joint ensures a secure fit and enhanced air-tightness, ideal for cold environments and clean rooms.

Fire Resistance and Durability

Certified with a B2 fire rating (DIN 4102), these panels deliver dependable fire resistance without compromising weight or strength. The panels withstand temperatures ranging from -30C to +80C and provide high load-bearing capacity, making them suitable for demanding structural applications.

Sustainable and Eco-Friendly Materials

Manufactured using eco-friendly blowing agents, our panels are CFC and HCFC free, minimizing their environmental impact. With a long service life of over 25 years and recyclable materials, this product meets modern sustainability standards while still delivering superior insulation and protection.

FAQ's of 30 mm Puff Panel:

Q: How are 30 mm Puff Panels installed to maintain optimal insulation and durability?

A: 30 mm Puff Panels should be installed on a flat, dry surface, with joints (either Cam Lock or Tongue and Groove) properly sealed to ensure air-tightness and the best insulation performance. Proper handling is crucial to avoid damaging the panels during installation.

Q: What are the key benefits of using these panels for cold storage and clean rooms?

A: The panels provide excellent thermal insulation, minimizing energy loss. With high moisture and fire resistance, sound insulation (24-28 dB), and hygienic, durable surfaces, they are ideal for environments that require controlled temperature, cleanliness, and acoustic management.

Q: When should I choose custom sizes or finishes for the panels?

A: Custom widths and lengths (up to 10 meters) or alternate color finishes are recommended when you have specific architectural requirements or need panels to fit non-standard spaces. Discuss your project needs with the supplier to ensure optimal fit and appearance.

Q: Where can these panels be effectively utilized?

A: These 30 mm Puff Panels are suitable for cold storage facilities, prefabricated and modular buildings, clean rooms, roofing, wall cladding, and other environments requiring robust thermal, acoustic, and fire-resistant barriers.

Q: What maintenance is required to ensure the panels' long service life?

A: To maintain over 25 years of effective use, periodically inspect the panel surfaces and joints for damage or loose seals. Clean the panels as recommended, and quickly repair any surface coating damages to prevent corrosion or moisture ingress.

Q: How eco-friendly are the materials and manufacturing process of the panels?

A: These panels are produced using CFC and HCFC-free rigid polyurethane foam and eco-friendly blowing agents. All metal sheets used are recyclable, ensuring the panels have minimal environmental impact while offering excellent performance.
